lpg transport trailer is composed of high quality lpg tank and reliable running gear. In producting precess, will perform strict 23 steps procedures including flaw detection, heat treatment, blowing sand, airtight test, and hydrostatic test, etc. 20 ton lpg transport trailer carry out standard: China National steel pressure vessel standard GB150.1`4-2011 or ASME boiler and pressure vessel standard.
49.6m3 lpg transport trailer can be used to transport 49.6 m3 Propane, Propylene, isobutane, isobutene, liquid ammonia, butadiene, dimethyl ether, methylamine chloride, pentane, etc lpg gas.
|
 |
 |
 |

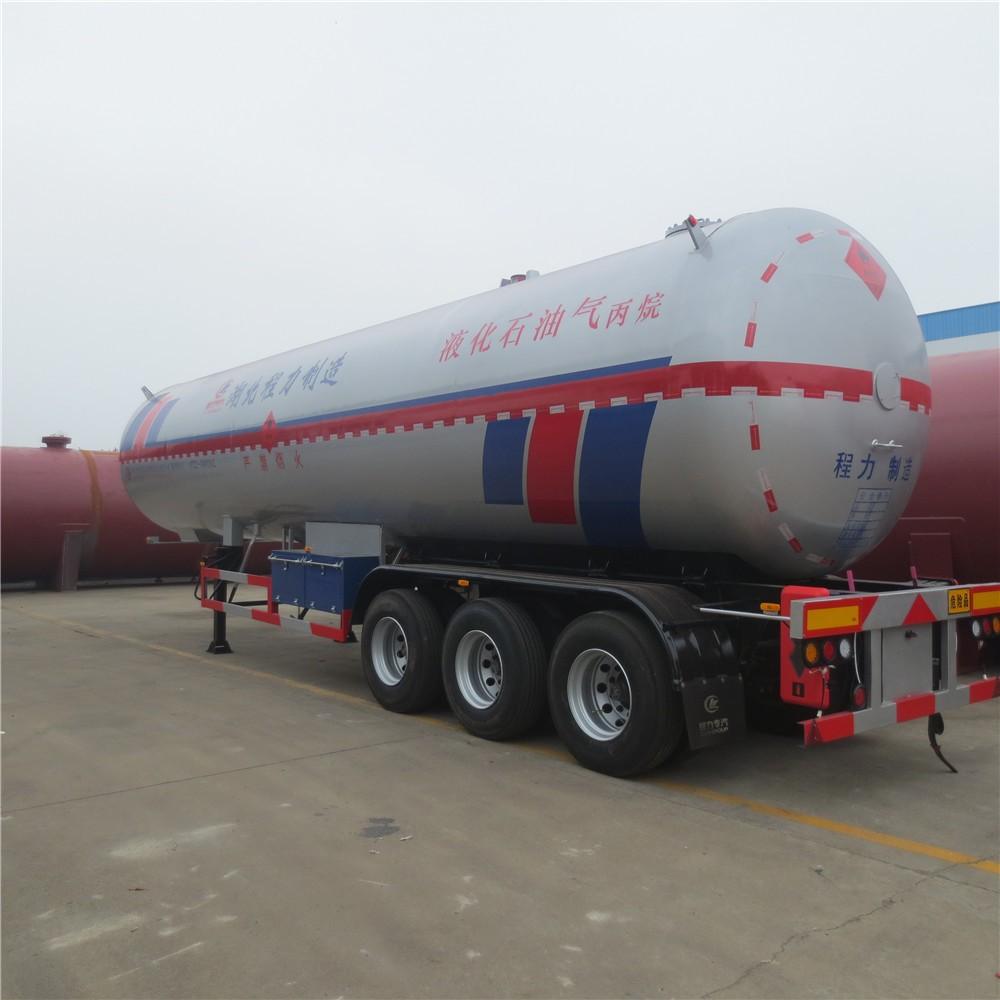

49.6 M3 20.8ton Lpg Transport Trailer
Lpg transport trailer application
Lpg transport trailer is also called lpg tank semitrailer, is one semitrailer type lpg tank vehicle. Is mainly used to transport kinds of lpg gas including propane.
Product Features
-
49.6 m3, 20 ton lpg gas volume
-
Made of high quality lpg steel: Q345R, Q370R, Q420R, or ASME SA516M, etc
-
3 axle BPW with leaf spring or air suspension
-
More than 15 years service life
Main parameter
|
Product name |
49.6 M3 20.8ton Lpg Transport Trailer |
|
|
Tank parameter |
Overall dimension(L*W*H)(mm) |
12740*2480*3800mm |
|
Storage medium |
Propane |
|
|
Volume(m3) |
49.6m3 |
|
|
Curb weight (kg) |
14390 |
|
|
Tank material |
Q345R( Pressure vessel special steel plate) |
|
|
Tank thickness(mm) |
body 12mm/ Head 12mm |
|
|
Head type |
two oval-shaped head |
|
|
Design pressure(Mpa) |
1.61mpa |
|
|
Test pressure(Mpa) |
2.1Mpa |
|
|
Design temperature(℃) |
-19 ℃to 50 ℃ |
|
|
Paint process |
First step: Blowing sand; second step: spray antirust primer; third step: spray topcoats |
|
|
Accessories |
With China top brand safety valve, thermometer, pressure gauge, emergency shut-off valve, America magnetic Rochester brand ball float type level gauge, fire extinguisher, anti-static ground tape, two valve boxes, tool box, |
|
|
Manufacturing standards |
|
|
|
Certificate |
Factory Inspection Certificate(optional Third-party Inspection (BV) with additional cost) |
|
|
Chassis parameter |
Axle number |
3 |
|
Payload |
13000kg |
|
|
Suspension type |
BPW Leaf spring suspension |
|
|
Brakes |
6-channel air brake compressed air brake with ABS |
|
|
electrical |
24V, with pneumatic fittings and seven pole socket |
|
|
Tire number |
12 with a spare tire |
|
|
Tire type |
AEOLUS tires 12R22.5 |
|
|
King pin |
JOST 3-1/2″ |
|
|
Outrigger |
25 ton JOST outrigger manually operated with two speed |
|
Product detail
Structure Diagram of Lpg Transport Trailer
