Hydraulic arm garbage truck is also called hydraulic arm garbage compactor truck. 8 m3 hydraulic arm garbage truck is composed of hydraulic arm operation system, garbage compactor body, rear garbage barrel overturn device, etc.
8 m3 Garbage compactor body is made of side 4mm floor 5mm high quality low alloy steel or stainless steel. we can customize the volume, chassis brand, overturn device, etc
Dongfeng hydraulic arm garbage truck is exported to many countries in South-East Asia, South America, Middle-Asia, Middle -East, Africa, etc. Factory direct sale ensure reliable product quality and good after-sales service.
|
 |
 |
 |

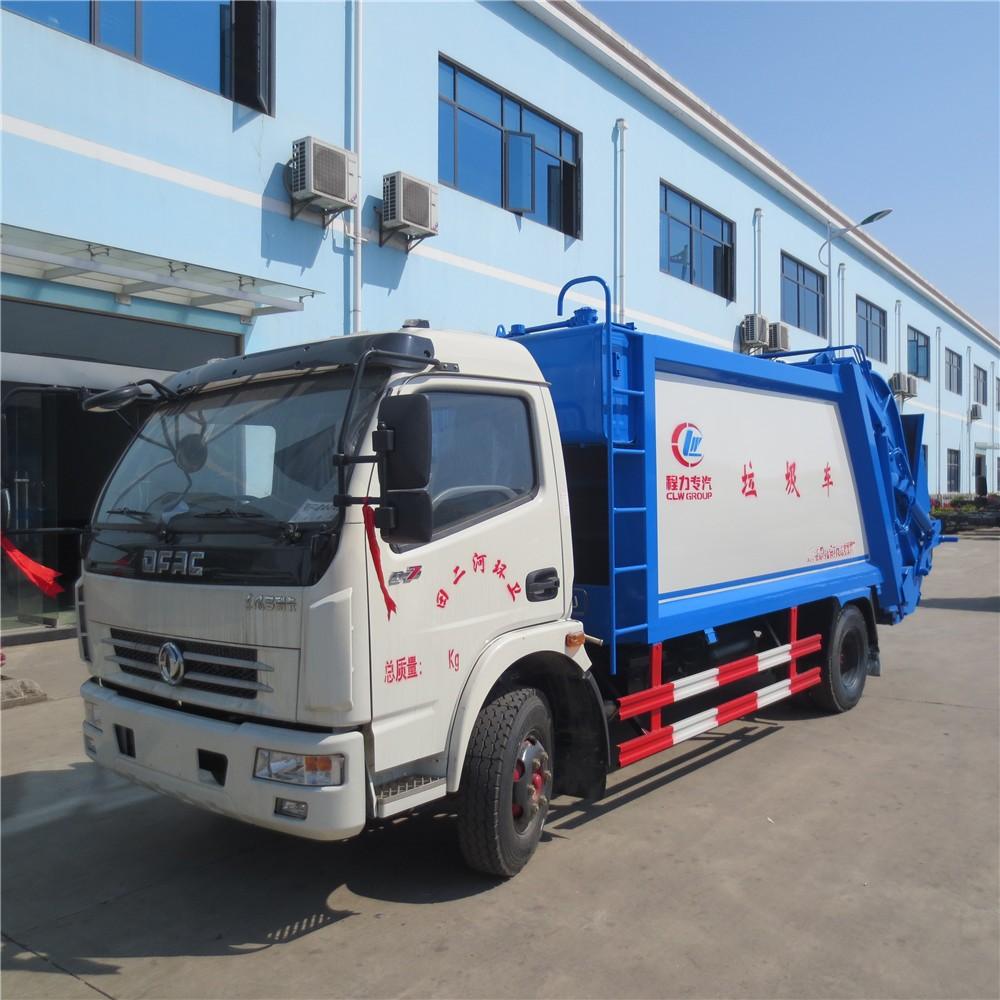

Dongfeng 8 M3 Hydraulic Arm Garbage Truck
Product Features
-
Dongfeng light duty cargo chassis with Dongfeng Chaoyang or Yuchai engine
-
8 cbm garbage compactor capacity
-
Rear garbage overturn device for 240L, 600L, 1100L plastic, iron garbage barrel or small garbage dump truck
Main parameter
|
Product Name |
DONGFENG 8 M3 Hydraulic Arm Garbage Truck |
|
Driving Type |
4×2 |
|
Weight /Volume |
|
|
Garbage container Volume(cbm) |
8 |
|
Rated payload weight(kg) |
5000 |
|
Dimensions |
|
|
Wheelbase(mm) |
3800 |
|
Overall Dimension(mm) |
7205×2260×3190 |
|
Engine |
|
|
Engine brand & model |
DONGFENG CHAOYANG & CY4102Q |
|
Engine type |
4 stroke, water-cooled, straight line 4 cylinders, diesel |
|
Displacement(L)/Power(kw) |
3.856/88 |
|
Chassis |
|
|
Axle Quantity |
2 |
|
Transmission Type |
5 forwards,1 reverse gear, manual |
|
Steering Type |
LHD or RHD with power steering |
|
Brake system |
Air brake |
|
Tire Spec. & size |
7.50R16, 6 with a spare |
|
Cab |
|
|
Standard configuration |
Flat proof, single row , radio, sound and so on |
|
Air conditioning |
Have |
|
Performance parameter |
|
|
Garbage container material |
Low alloy carbon steel, side 4mm, floor 4mm |
|
Standard configuration |
loading hopper, push plate , scratch board, Sliding board, one or two sewage tanks, rear loader garbage barrel overturn mechanism or triangle bucket overturn mechanism, China well-known brand oil cylinder, high-density high-pressure tubing, multi-valve and pump, etc |
Product detail
A: We are both. We have operated our own factory for over a decade and recently established a trading company to better serve our overseas customers. We welcome your inquiries and factory visits. A: Our delivery time usually ranges from 20 to 50 days after receiving the advance payment. The exact timeline depends on the specific items and quantities in your order. A: We maintain strict quality control standards through our ISO9001:2008 certified system. Additionally, our professional Quality Control team conducts thorough inspections to guarantee the excellence of our products. A: We require a 40% deposit via T/T (Telegraphic Transfer), with the remaining 60% due before delivery. We will provide photos of the products and packaging for your approval before the final payment. A: Large trucks are typically shipped via RORO (Roll-On/Roll-Off) or bulk cargo ships. Smaller vehicles can be transported in containers. Please contact us for a detailed shipping quotation. A: Absolutely. We can design and manufacture customized products to meet your specific requirements. A: We offer a five-year warranty on our products, covering manufacturing defects. If any quality issues arise within this period, we will repair or replace the product at our expense. For issues outside the warranty coverage, we provide after-sales service at the customer’s expense.
Q: Are you a trading company or a manufacturing factory?
Q: What is your typical delivery time?
Q: How do you ensure product quality?
Q: What are your payment terms?
How are your trucks shipped?
Q: Do you offer customized products?
Q: What kind of after-sales service do you provide?
