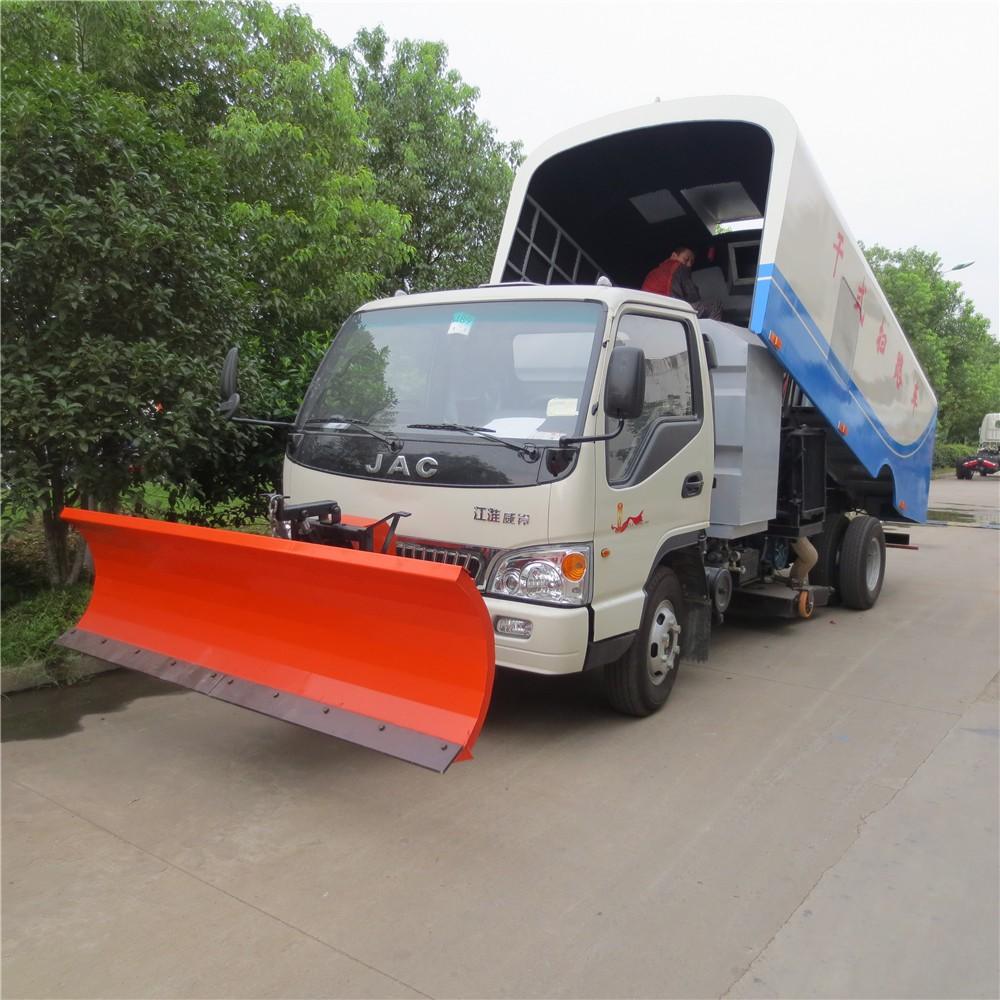

Jac 3 Ton Airport Runway Sweeper Truck

Airport runway sweeper truck is mainly used to clean dust, small stones, mud, leaves, stains on airport runway. Jac airport runway sweeper truck is also can equipped with front snow shovel, achieve snow removal function in the winter.

Jac airport runway sweeper truck is composed of 4 pieces high quality sweeping discs, JMC 78-horsepower sub-engine , Dali brand motor, Schneider control switch, Taiwan hydraulic valve , Changyuan hydraulic pump, Weilong water pump, maintenance-free self-disengaging clutch, maintenance-free fan moter, stainless steel water tank, stainless steel trash bin, tail LED arrow light,manual pump emergency system, etc.

Jac 3 Ton Airport Runway Sweeper Truck

airport runway sweeper truck


Application and Introduction

Airport runway sweeper truck is a new design sweeper vehicle that integrates road cleaning, garbage recycling and transportationm etc works. And all operations is automatically done by the mechanical sweeper brush and suction plate.

Product feature

  • Jac 3 ton high quality sweeper truck chassis

  • Front snow shovel+ middle sweeper brush, suction plate+ rear watering system

  • Factory customized production, use worry-free

Main Parameter

Product Name

Jac 3 ton airport runway sweeper truck

Driving Type

 4×2

Weight /Volume

Tank Volume(m3)

5 m3 (dust tank)+2m3 (water tank)

Rated payload weight(kg)

6000

Dimensions

Wheelbase(mm)

3800

Overall Dimension(mm)

6995×2380×3300

Engine

 Engine brand & model

DONGFENG Chaoyang & CY4102

Engine type

4 stroke, water-cooled, straight line 4 cylinders, diesel

Displacement(L)/Power(kw)

3.707/90

 Chassis

Axle Quantity

2

Transmission Type

5 forwards,1 reverse gear, manual

Steering Type

LHD or RHD with power steering

Brake system

Air brake

Tire Spec. & size

7.50R16, 6 with a spare

Cab

Standard configuration

Flat proof, single row, radio, sound and so on

Air conditioning

Have

Performance parameter of Jac 3 ton airport runway sweeper truck

Water tank

2m³ stainless steel body

Dust tank

4m³stainless steel body

Standard configuration

One vice diesel engine, 4 units sweeper brushes, 1 piece sucker, stainless steel water tank and dust tank, maintenance-free airflow, manual pump emergency system, hydraulic motor, Germany Schneider control switch, CVT self-separation clutch, watering system, led arrow light etc,  optional with snow shovel

Working parameter

1. Cleaning efficiency≥95%

2. Suction sweeping width:2.5m

3. Maximum particle size of inhalation: 80mm

4. Traveling speed when working: 3‐20km/h


Product detail



Q: Are you a trading company or a manufacturing factory?

A: We are both. We have operated our own factory for over a decade and recently established a trading company to better serve our overseas customers. We welcome your inquiries and factory visits.

Q: What is your typical delivery time?

A: Our delivery time usually ranges from 20 to 50 days after receiving the advance payment. The exact timeline depends on the specific items and quantities in your order.

Q: How do you ensure product quality?

A: We maintain strict quality control standards through our ISO9001:2008 certified system. Additionally, our professional Quality Control team conducts thorough inspections to guarantee the excellence of our products.

Q: What are your payment terms?

A: We require a 40% deposit via T/T (Telegraphic Transfer), with the remaining 60% due before delivery. We will provide photos of the products and packaging for your approval before the final payment.

How are your trucks shipped?

A: Large trucks are typically shipped via RORO (Roll-On/Roll-Off) or bulk cargo ships. Smaller vehicles can be transported in containers. Please contact us for a detailed shipping quotation.

Q: Do you offer customized products?

A: Absolutely. We can design and manufacture customized products to meet your specific requirements.

Q: What kind of after-sales service do you provide?

A: We offer a five-year warranty on our products, covering manufacturing defects. If any quality issues arise within this period, we will repair or replace the product at our expense. For issues outside the warranty coverage, we provide after-sales service at the customer’s expense.
