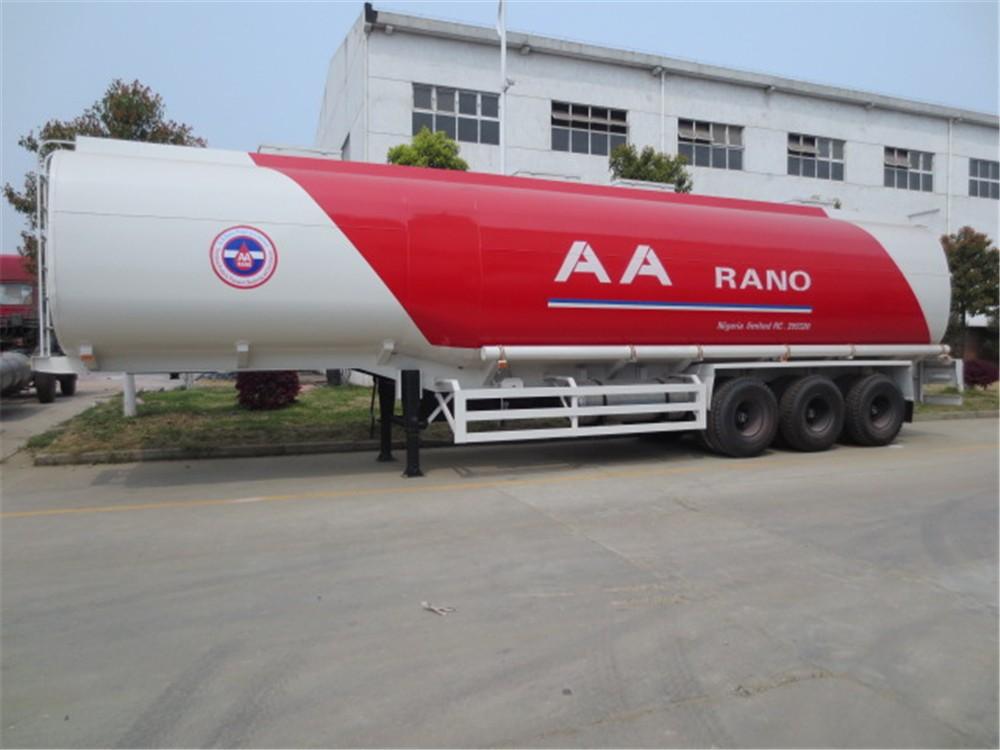

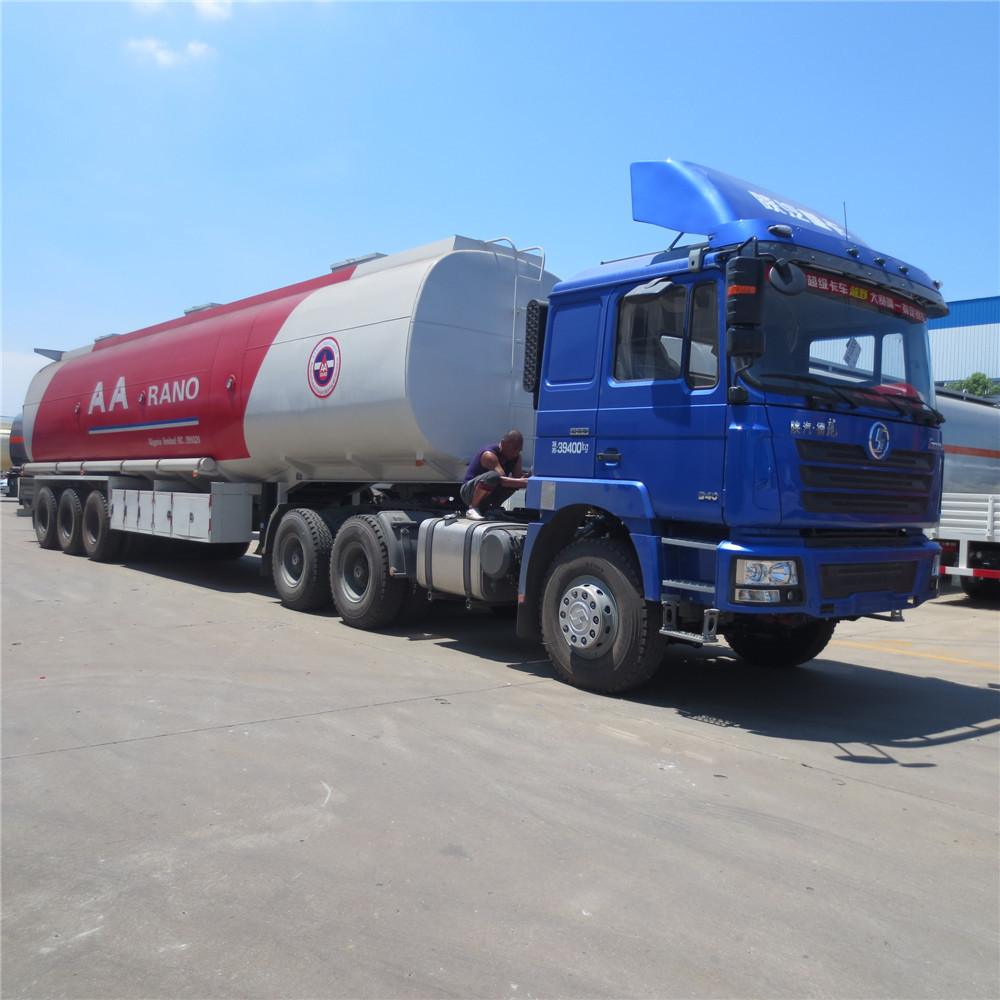

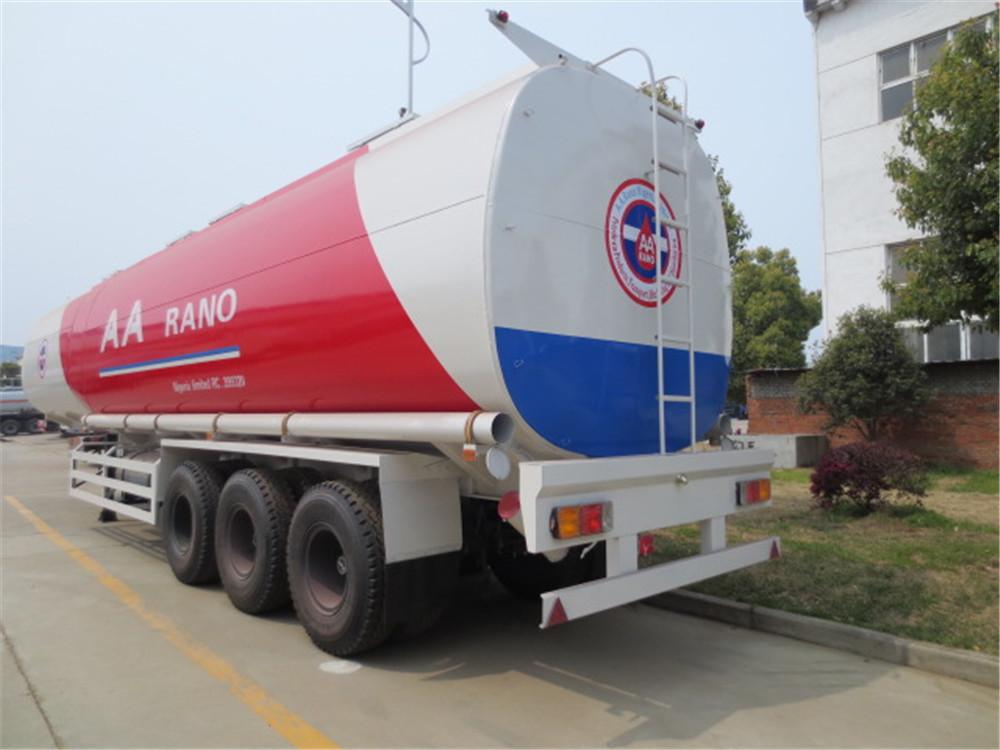

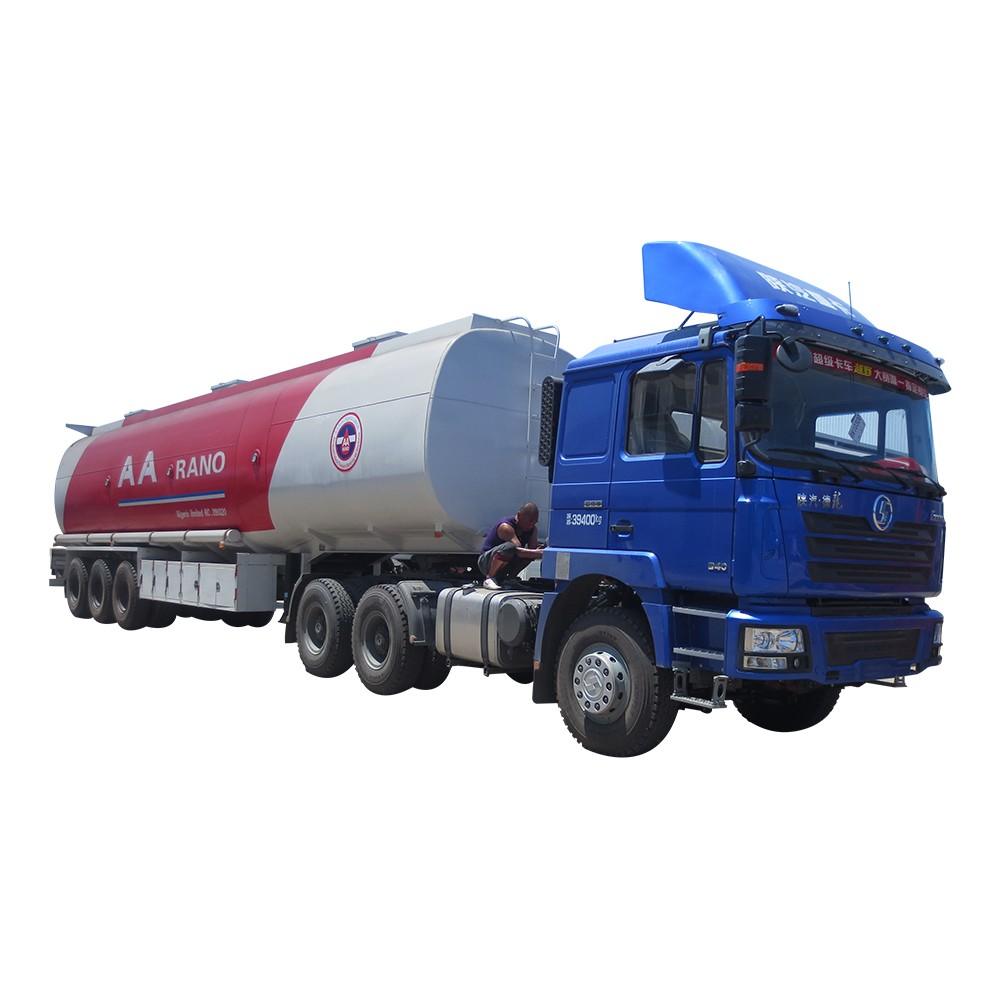

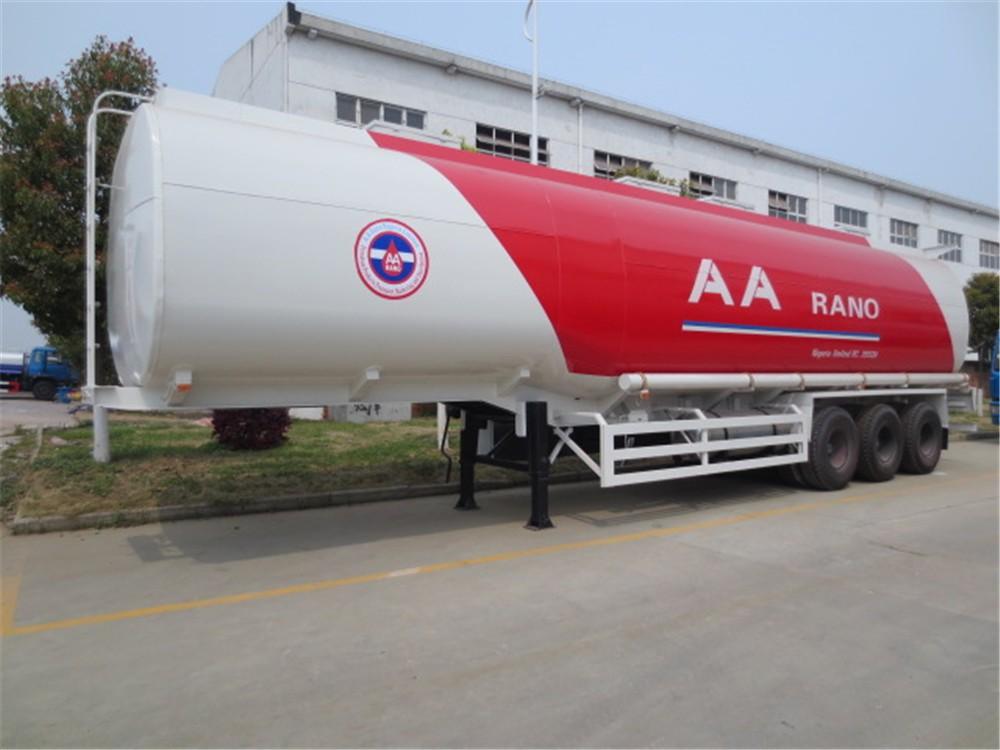

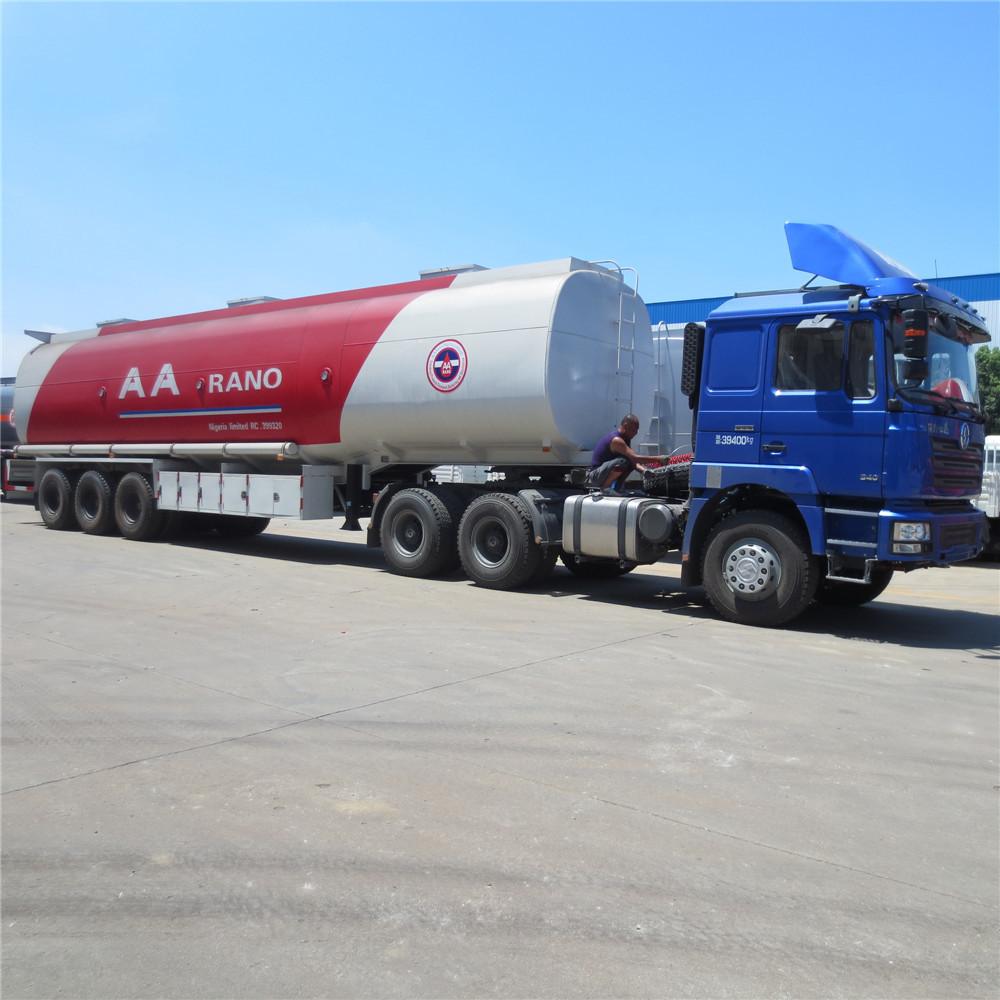

3 axle oil tank transport semi trailer 50000 liters

Oil tank transport semi trailer adopt carbon steel, aluminum alloy or stainless steel supplied by China state-owned steel enterprisers, and adopt BPW or China FUWA axle and BPW landing gear, ensure the overall quality

Oil tank use automatic submerged arc welding, argon arc welding, etc craft, adopt China top or European Standard or USA standard accessories, ensure oil tank accessory quality;

Making air tightness and water pressure test for every oil tank after finishing welding, at the same time, professional institutions supervision inspect the oil tank and issue oil tank inspection report. Also can introduce professional third-party inspection agencies, such as BV, TUV, SGS,etc. And in fact, our tank can pass Europe ADR Certificate.

3 axle oil transport semi trailer 50000 liters

Application and Brief Introduction

oil tank transport semi trailer is mainly used for transportation and storage of petroleum derivatives :gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products.

Product Features of 3 axle oil transport semi trailer 50000 liters

FUWA or BPW 3 axles;
FUWA or BPW landing gear;
JOST Kingpin
Optional: China standard or European Standard accessory;
Optional: Carbon steel, aluminum alloy, stainless steel;

Main Parameter

GENERAL DESCRIPTION
Vehicle Brand	CLW
Overall Dimension(L x W x H)	12800x2500x3850mm
GVW./Kerb Weight	40000Kg/8200Kg.
TANK BODY
Tank Shape	Elliptical or square round
Tank Volume	50000 liters
Tank Material	5mm Carbon steel , optional aluminum alloy or Stainless Steel
End Cover and Baffles	6mm end covers. One compartment with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move.
Outlet Valve	Size 4″ ball valves fixed with cam-lock coupling in the discharge box
Manhole	Chinastandard or European standard
Necessary Accessories	One aluminum alloy subsea valves，one or two discharge valve, two pieces fuel pipes, one tool box; mobile guardrail, static grounding towing tape, rear climbing ladder, various connectors and dust caps
Option	European standard oil gas recovery system
CHASSIS
Heavy duty reinforced chassis with reinforced axle. The tank’s framework consists of two fabricated steel beams of high quality 16 Manganese steel. The two beams are fully welded all over their length on the tank. The beams are strongly connected with the cross members supporting the suspension and the kingpin upper coupler.
RUNNING GEAR
Axles	BPW/FUWA brand,etc. 3x13ton axles with double wheels
Landing Legs	JOST/FUWA brand,etc. 28tons per pair
Suspension System	Steel spring suspension or air bag suspension
King Pin	JOST/FUWA brand,etc. 2inch or 3.5inch,bolted and welded type are optional
Tyre No.&Spec.	12 tires,11.00R20 steel wire tire or 12R22.5(tubeless vacuum tire)
MUDGUARDS
Heavy duty mudguard rubber mud-flaps
BUMPERS
Side bumpers mounted between landing gear and first axle, rear bumper is European standard
ELECTRIC SYSTEM
24V lighting system,electrical socket for lighting,rear lamp with parking,direction,fog,reverse, 4 side lights
PAINTING
All steel plates and structure are blasted first, then painted with two anti-corrosive primer coats and two lever top.

Product detail

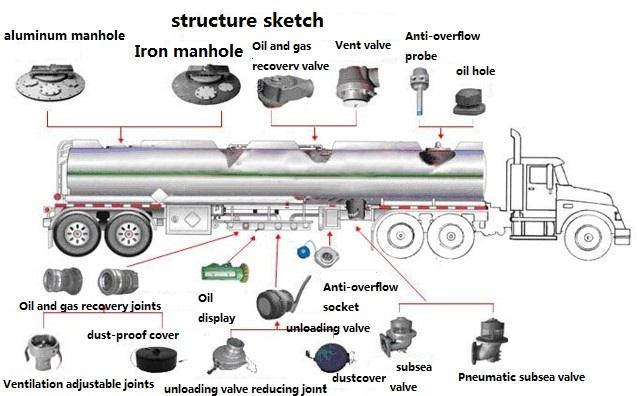

Oil tank transport semi trailer structure diagram

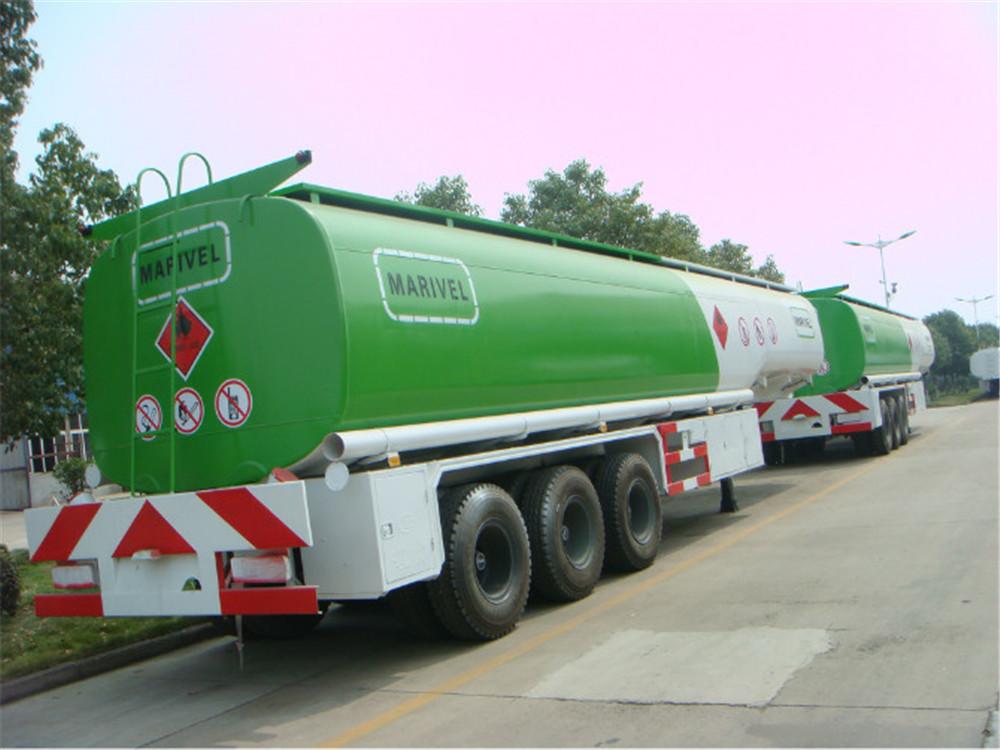

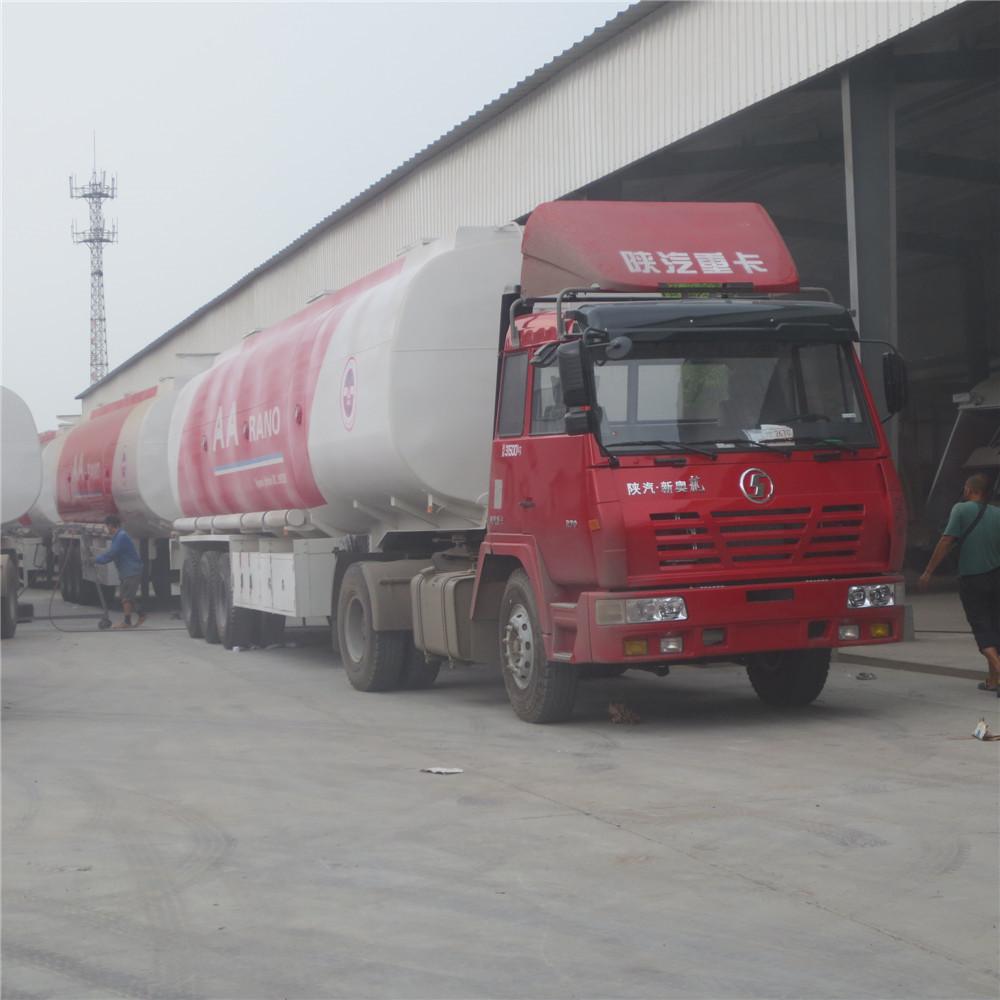

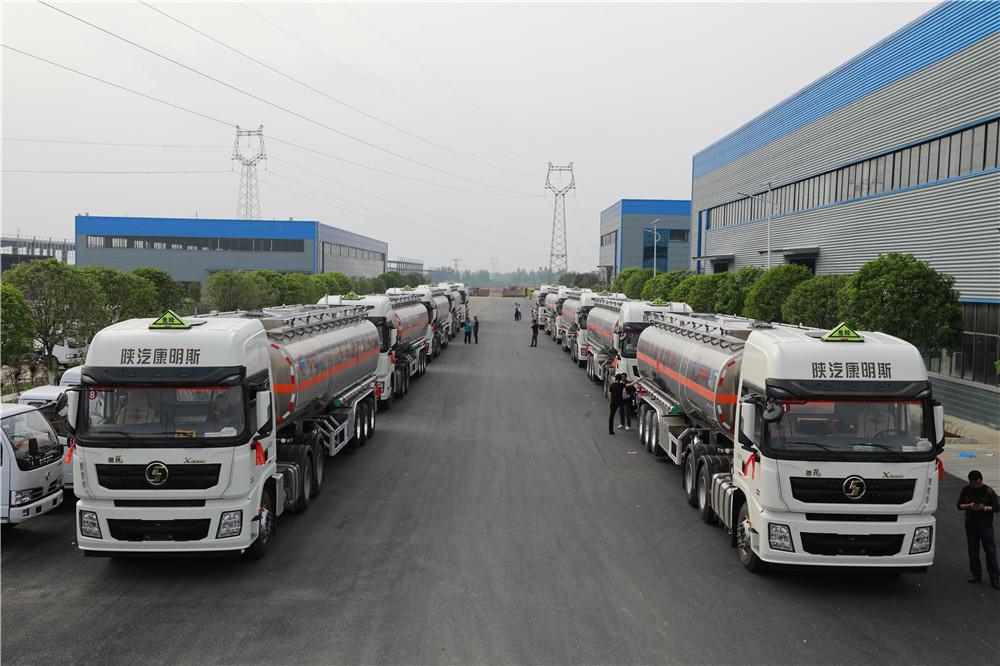

Batch exported oil tank transport semi trailer

Q: Are you a trading company or a manufacturing factory?

A: We are both. We have operated our own factory for over a decade and recently established a trading company to better serve our overseas customers. We welcome your inquiries and factory visits.

Q: What is your typical delivery time?

A: Our delivery time usually ranges from 20 to 50 days after receiving the advance payment. The exact timeline depends on the specific items and quantities in your order.

Q: How do you ensure product quality?

A: We maintain strict quality control standards through our ISO9001:2008 certified system. Additionally, our professional Quality Control team conducts thorough inspections to guarantee the excellence of our products.

Q: What are your payment terms?

A: We require a 40% deposit via T/T (Telegraphic Transfer), with the remaining 60% due before delivery. We will provide photos of the products and packaging for your approval before the final payment.

How are your trucks shipped?

A: Large trucks are typically shipped via RORO (Roll-On/Roll-Off) or bulk cargo ships. Smaller vehicles can be transported in containers. Please contact us for a detailed shipping quotation.

Q: Do you offer customized products?

A: Absolutely. We can design and manufacture customized products to meet your specific requirements.

Q: What kind of after-sales service do you provide?

A: We offer a five-year warranty on our products, covering manufacturing defects. If any quality issues arise within this period, we will repair or replace the product at our expense. For issues outside the warranty coverage, we provide after-sales service at the customer’s expense.
