Vacuum road sweeper applies to all kinds road clean operations in urban streets, municipal squares, airport pavements, urban residential areas .Vacuum road sweeper not only can sweep garbage, but also can water for dust suppression purification.
Vacuum road sweeper integrates the functions of road sweeper, sprinkler and high-pressure cleaning vehicle, with pavement cleaning, pavement scrubbing, high-pressure cleaning, low-pressure cleaning, curbstone scrubbing, garbage collection, sewage recycling, spray dust reduction ,road separation wall cleaning, small advertising cleaning, etc multiple job functions.
|
 |
 |
 |

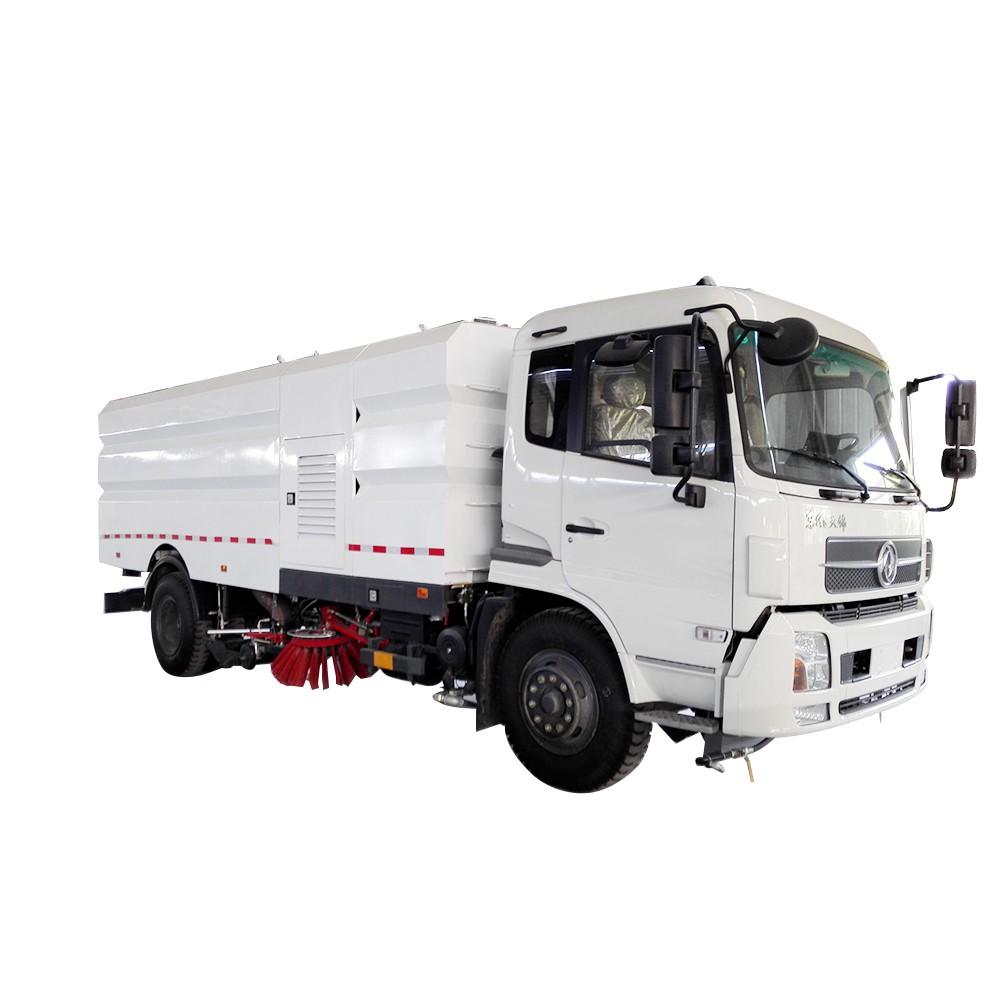

8 Ton Vacuum Road Sweeper
Application and Introduction
Vacuum road sweeper is a new and efficient cleaning equipment that integrates road cleaning, garbage recycling and transportation. All operations is done by the mechanical sweeper brush and suction plate.
Product feature
-
Vacuum road sweeper is effortless and efficient, all actions is finished by mechanical sweeper brush and vacuum suction palte
-
8 ton vacuum road sweeper can combine with the function of sweeping, cleaning, transporting the dust, small stones, mud, leaves, stains, etc. is environmental protection and practical
-
dongfeng 8 ton vacuum road sweeper adopt China and International high quality spare parts: auxiliary engine, pump, valve, control system, etc.
Main Parameter
|
Product Name |
DONGFENG 8 ton vacuum road sweeper |
|
Driving Type |
4×2 |
|
Weight /Volume |
|
|
Tank Volume(m3) |
8m3 (dust tank)+4m3 (water tank) |
|
Rated payload weight(kg) |
8000 |
|
Dimensions |
|
|
Wheelbase(mm) |
4700 |
|
Overall Dimension(mm) |
8995×2480×3350 |
|
Engine |
|
|
Engine brand & model |
DONGFENG Cummins & B190 33 |
|
Engine type |
4 stroke, water-cooled, straight line 6 cylinders,diesel |
|
Displacement(L)/Power(kw) |
5.9/140 |
|
Chassis |
|
|
Axle Quantity |
2 |
|
Transmission Type |
6 forwards,1 reverse gear, manual |
|
Steering Type |
LHD or RHD with power steering |
|
Brake system |
Air brake |
|
Tire Spec. & size |
10.00R20, 6 with a spare |
|
Cab |
|
|
Standard configuration |
Flat proof, single row, radio, sound and so on |
|
Air conditioning |
Have |
|
Performance parameter of DONGFENG 8 ton vacuum road sweeper |
|
|
Water tank |
4m³ stainless steel body |
|
Dust tank |
8m³ stainless steel body |
|
Standard configuration |
One vice diesel engine, 4 units sweeper brushes, 1 piece sucker, stainless steel water tank and dust tank, maintenance-free airflow, manual pump emergency system, hydraulic motor, Germany Schneider control switch, CVT self-separation clutch, watering system, led arrow light etc |
|
Working parameter |
1. Cleaning efficiency≥95% |
|
2. Suction sweeping width:2.5m |
|
|
3. Maximum particle size of inhalation: 80mm |
|
|
4. Traveling speed when working: 3‐20km/h |
|

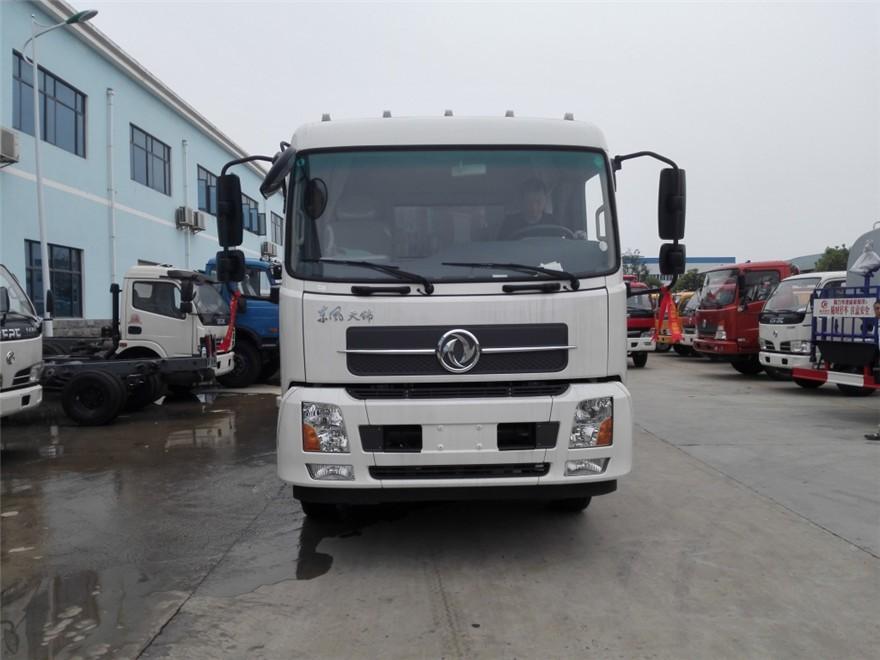

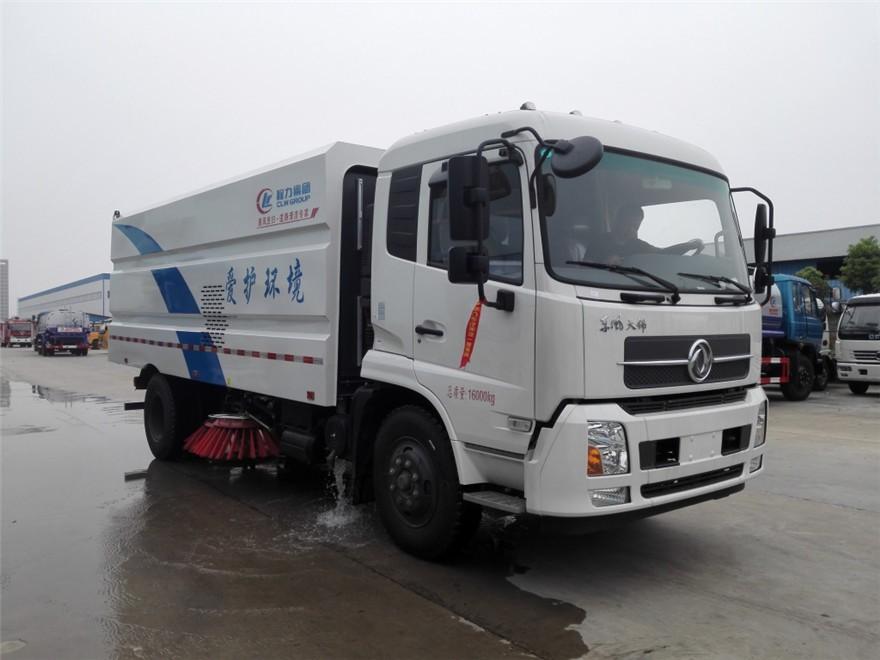

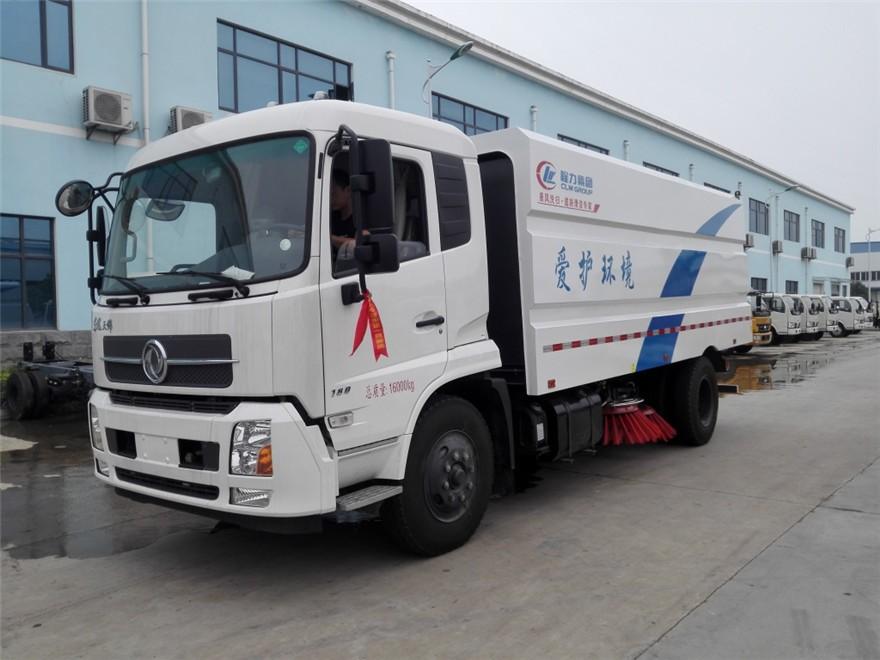

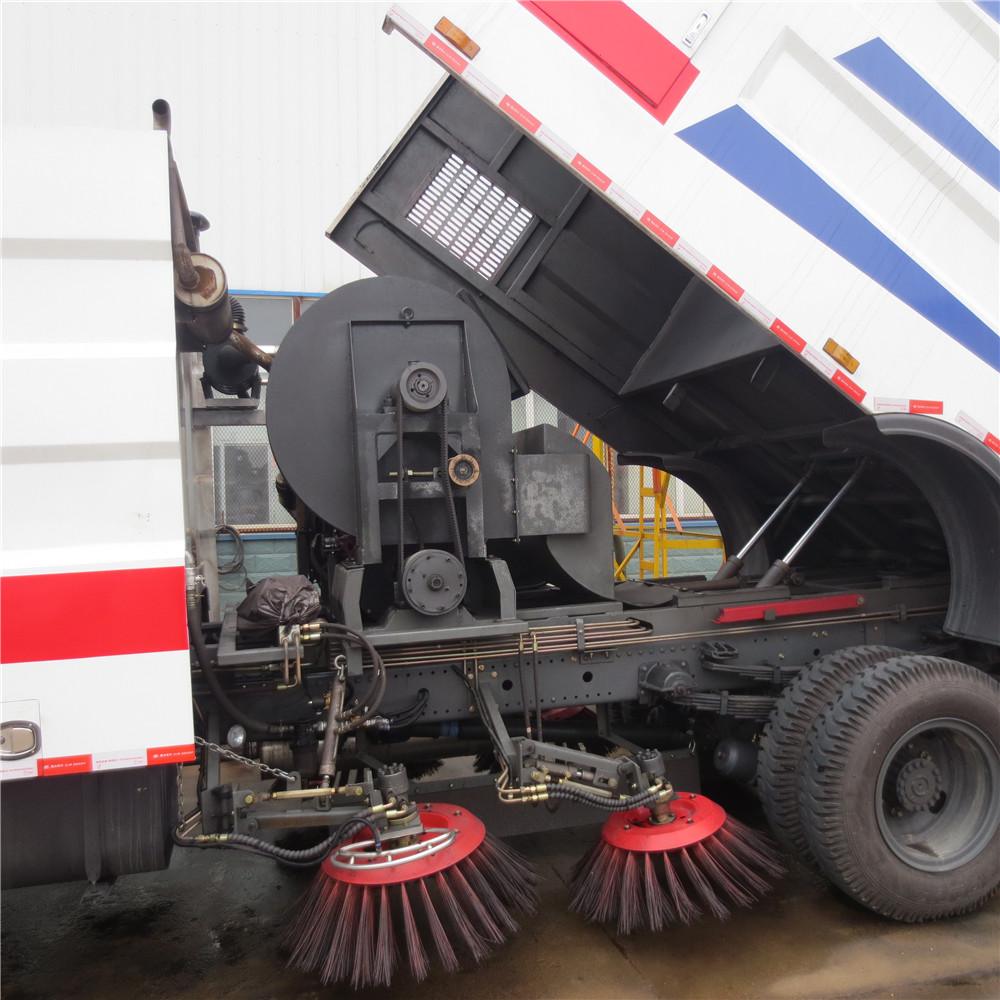

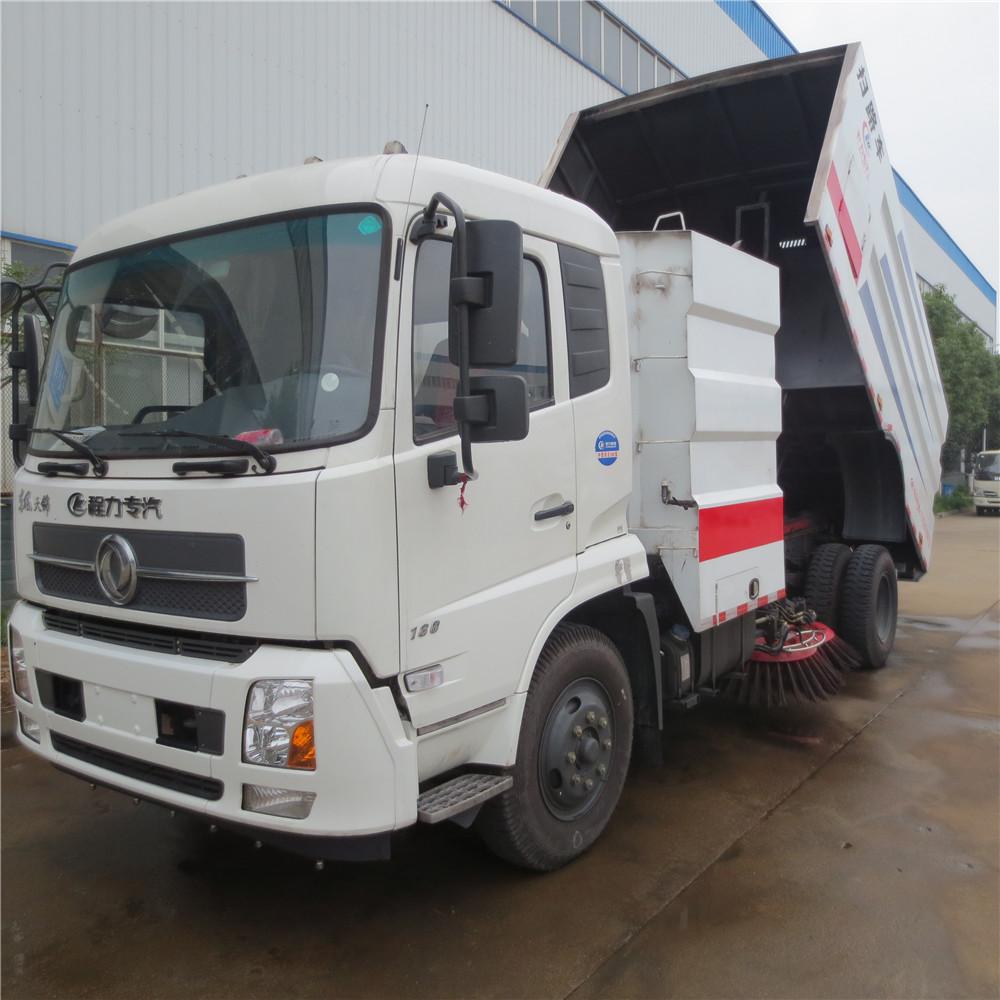

Product details

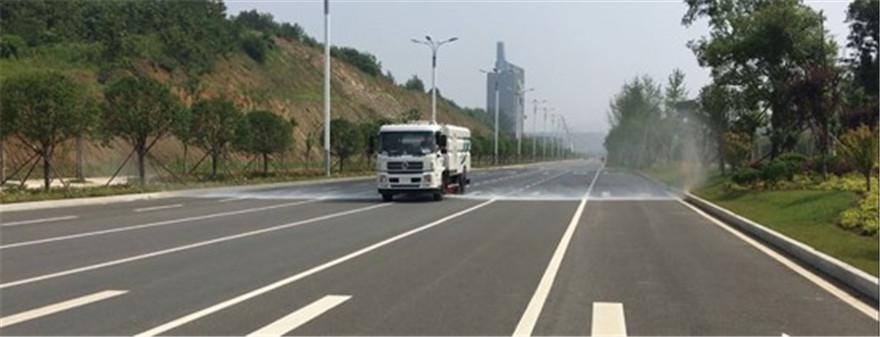

Max. 24 m flushing width

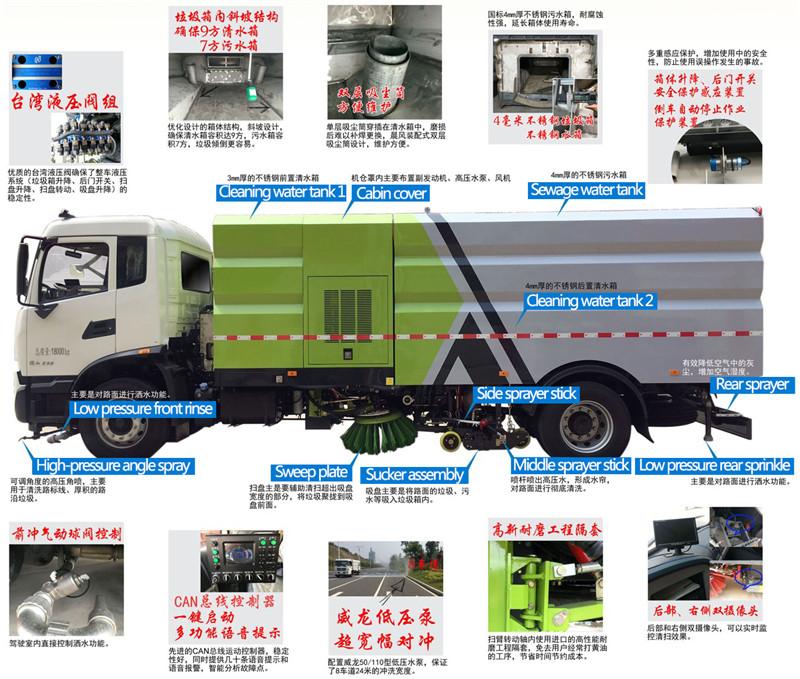

Structure sketch of Vacuum road sweeper
