10m3 garbage compactor truck applies to collect household garbage and can directly compress the garbage inner the garbage container, can increase garbage loading capacity. Garbage compactor truck is composed of garbage container, rear garbage loading bin, push plate, scratch board, sliding board, sewage tank and hydraulic control system, etc.
Garbage compactor truck is customized according to the customer’ personal requirements, factory direct sale, reliable quality and good after-sale service.
|
 |
 |
 |

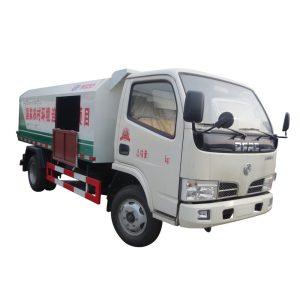

Dongfeng 10 M3 Garbage Compactor Truck
10m 3 garbage compactor truck application and introduction
10 m3 garbage compactor truck is mainly used to collect, compress, transfer household garbage, garbage compactor truck is fully sealed, and the sewage in the process of self-compression, self-dumping and compression all enters the sewage tank, which completely solves the problem of secondary pollution.
Product Features
-
Dongfeng Cummins 170hp with reliable cost-effective chassis
-
10m3 garbage compactor container
-
Direct compresion function, PLC operation
-
Good seal performance and good quality
Main parameter
|
Product Name |
DONGFENG 10 m3 garbage compactor truck |
|
Driving Type |
4×2 |
|
Weight /Volume |
|
|
Tank Volume(cbm) |
10 |
|
Rated payload weight(kg) |
8000 |
|
Dimensions |
|
|
Wheelbase(mm) |
3950 |
|
Overall Dimension(mm) |
7505×2250×3290 |
|
Engine |
|
|
Engine brand & model |
DONGFENG Cummins & B170 33 |
|
Engine type |
4 stroke, water-cooled, straight line 6 cylinders, diesel |
|
Displacement(L)/Power(kw) |
5.9/125 |
|
Chassis |
|
|
Axle Quantity |
2 |
|
Transmission Type |
6 or 8 forwards,1 reverse gear, manual |
|
Steering Type |
LHD or RHD with power steering |
|
Brake system |
Air brake |
|
Tire Spec. & size |
9.00R20, 6 with a spare |
|
Cab |
|
|
Standard configuration |
Flat proof, single sleeper , radio, sound and so on |
|
Air conditioning |
Have |
|
Performance parameter |
|
|
Garbage container material |
Q235 carbon steel, side 4mm, floor 5mm |
|
Standard configuration |
loading hopper, push plate , scratch board, Sliding board, sewage tank, rear loader hanging barrel overturn mechanism or triangle bucket overturn mechanism, China well-known brand oil cylinder, high-density high-pressure tubing, multi-valve and pump, etc |
| Sewage tank | 200L or bigger |
| Control way | Electronic Control in the cab and hydraulic control on the body side, with PLC |
Product detail
Garbage compactor truck structure diagram
